With firm commitment to quality, we are involved in manufacturing, exporting and supplying the best quality Flue Gas Analyzer. Our offered equipment is mainly used to remove water vapor from the flue-gas sample also to prevent the formation of water droplets inside the probe hose. This equipment is efficiently manufactured under the strict surveillance of competent professionals by making use of topnotch quality components and pioneering technology in tune with set market norms. Apart from this, offered Flue Gas Analyzer is made available in diverse technical specifications to meet the various requirements of the clients.

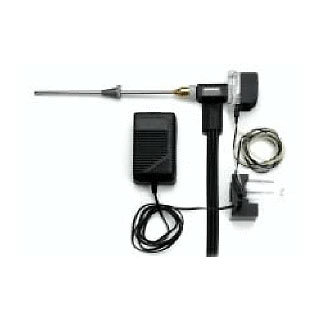

Compact conditioner/probe assembly design
Peltier cooler to remove water from sample
Built-in filter section
12" probe tube length with probe stop cone (standard)
15' hose length with sample draft & temperature lines
Maximum operating temperature of 1472 oF (800 oC)
Optional probe tube lengths available, up to 39"
Moisture Removal for Comprehensive and Accurate Measurements
Since NO2 and SO2 are absorbed by water, effective moisture removal from the flue-gas sample is of primary importance when obtaining accurate and comprehensive data, especially for emissions testing.
Used in conjunction with the ECA 450, the Flue-Gas Sample Conditioning System functions to remove water vapor from the flue-gas sample, thus preventing the formation of water droplets inside the probe hose. If water droplets were to form, a portion of the gas sample could be absorbed by the water, thus resulting in lower-than-actual NO2 and SO2 readings.
Water vapor is removed by passing the gas sample through a Peltier Cooler where the sample is chilled, causing the water vapor to condense. The water is then pumped out of the cooler and into a water trap.
