Angle Star

Angle Star
Angle Star
Send Inquiry
Product Code : 20
Product Description

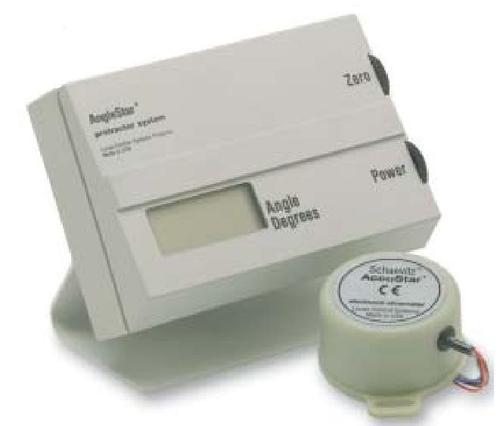

Electronic Protractor System

The Anglestar® Protractor System (APS) is a ready to use, stand alone system for angle measurements. The system incorporates the AccuStar® Electronic Clinometer, a digital display, and a four foot cable. (Cable lengths up to 200 feet are available. Consult factory for details.) This system works on a 9 volt battery and needs no external power.

The display can be mounted up to 200 feet from the sensor. There are three systems to choose from, ±20 degrees with a 0.01 degree resolution, ±45°, or a +90°  with 0.1 degree resolution.

Performance Specifications

Standard (P/N 02160001-000)

  • Linear Range : ±45°
  • Threshold & Resolution: 0.1°

High Resolution (P/N 02160003-000)

  • Linear Range: ±19.99°
  • Threshold & Resolution: 0.01°

90 Degree (P/N 02160005-000)

  • Linear Range : 0° to 90°
  • Threshold & Resolution : 0.1°

Linearity*

  • Null to 10°: 0.1°
  • 10° to 45°: ±1% of angle
  • Null Repeatability : ±0.1°
  • Cross Axis Error: <1% up to 45°
  • Sensor Time Constant : 0.3 second

Sensor Frequency

Response: 0.5 Hz

Electrical Specifications

  • Voltage Supply: 9 volt battery
  • Battery Life (approx.) : 1000 hours
  • Temperature Range: -18° to 55°C

Interconnect Cable

  • Four Conductor, AWG 26, PVC Jacket
  • Standard Length : 4 feet (≅1.2 meters)
  • Maximum Length:200 feet (≅61.5 meters)
